Cisco 300-175 Bootcamp 2021

NEW QUESTION 1

Which two tasks can you perform from Cisco UCS Manager? (Choose two.)

• A. Configure or manage external storage on the SAN.
• B. Deploy an operating system.
• C. Configure San PIN groupsS
• D. Configure QoS classes and definitions.
• E. Restart an Oracle database.

Answer: CD

NEW QUESTION 2

Which two Cisco UCS firmware are contained in the Cisco UCS Infrastructure software bundle? (Choose two.)

• A. Cisco I/O module firmware
• B. Cisco UCS IMC
• C. Cisco UCS BIOS
• D. Cisco UCS fabric interconnects firmware
• E. Cisco UCS adapters

Answer: AD

Explanation:

for A, D: "A" BUNDLE
Infrastructure software bundle — This bundle is also called the A bundle. It contains the firmware images that the fabric interconnects, IO Modules, and Cisco UCS Manager require to function.
"B" BUNDLE
B-S eries server software bundle — Also called the B bundle, this bundle contains the firmware images that the B-Series blade servers require to function, such as adapter, BIOS, CIMC, and board controller firmware. Release Bundle Contents for Cisco UCS Manager, Release 3.1 provides details about the contents of the BSeries server software bundle.
Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/FirmwareMgmt/3 b_UCSM_GUI_Firmware_Management_Guide_3_1_chapter_01.html

NEW QUESTION 3

Which parameter can be configured during the initial system setup of Cisco UCS Fabric Interconnect from the CLI, without restoring the configuration from an existing backup?

• A. the server ports, network ports, and storage ports
• B. the reserved VLAN IDs
• C. the default number of dynamic vNICs
• D. standalone mode or cluster mode of the fabric interconnects

Answer: D

Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/cli/config/guide/2-2/b_UCSM_CLI_Configur

NEW QUESTION 4

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 5

Which items are hot-swappable on a UCS C-Series Server? (Choose-two)

• A. Internal Cooling Fans
• B. Power Supplies
• C. PCIe Card
• D. Mezzanine Card
• E. Riser Card

Answer: AB

Explanation:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/hw/C240M4/install/C240M4/replace.html

NEW QUESTION 6

Which BIOS setting is required for a VMware ESXi 5.0 host to support Cisco VM-FEX universal pasthrough mode?

• A. VT for Directed IO
• B. ACPI 10 Support
• C. VEMDPA Agent
• D. Execute Disabled Bit
• E. Processor C State

Answer: A

NEW QUESTION 7

Which two components can be specified in a host firmware package? (Choose two.)

• A. CPU
• B. BIOS
• C. Cisco Integrated Management Controller
• D. LOM
• E. DIMM

Answer: BC

NEW QUESTION 8

Which two items can you provision in a vHBA Template? (Choose two.)

• A. Max Data Field Size
• B. SCSI I/O Queues
• C. FCoE VLAN
• D. vHBA Interrupt Mode
• E. Stats Threshold Policy
• F. FLOGI Timeout

Answer: AE

NEW QUESTION 9

Open the windows by clicking on the minimized at the bottom of the viewing area. Windows can be minimized by clicking on the [X], repositioned by dragging the title bar, and resized by using the handle at the lower right corner to customize the viewing area.
If you are required to access the devices to complete this scenario, the mouse cursor will use a hand symbol when moved over device icons. Clicking the icon will open a device terminal so you can interact with the hardware.
Open the Questions window and begin by clicking a question number. When you have completed answering all questions, click Done to continue.

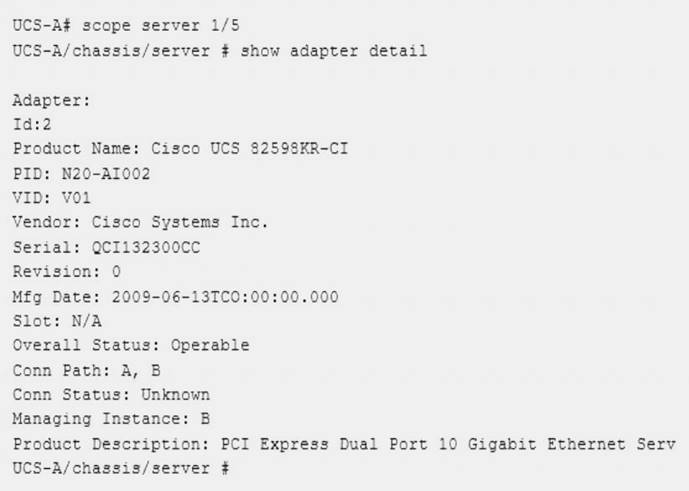

Scenario
Use your UCS knowledge on Adapter errors ………………………………………configurations.

We are working on which Chassis ID?

• A. 1
• B. 2
• C. 3
• D. 4
• E. 5

Answer: A

NEW QUESTION 10

An admin wants to make sure that for each VLAN added to a vNIC, a static MAC address entry is added to the fabric interconnect. Which setting within Cisco UCS Manager accomplishes this task?

• A. The MAC Register Mode in the network control policy is set to Only Native VLAN.
• B. The MAC Register Mode in the LAN connectivity policy is set to All Host VLANs.
• C. The MAC Register Mode in the network control policy is set to All Host VLANs.
• D. The MAC Register Mode in the LAN connectivity policy is set to Only Native VLAN.
• E. The MAC Register Mode in the link protocol policy is set to All Host VLANs.
• F. The MAC Register Mode in the link protocol policy is set to Only Native VLAN.

Answer: C

NEW QUESTION 11

Which of the following are true concerning authentication within a Cisco Unified Computing System?

• A. Authentication domains are used to leverage individual authentication systems.
• B. You can create up to 64 authentication domains, each associated with a provider group and realm in Cisco Unified Computing System Manager.
• C. Cisco Unfiled Computing System supports LDAP or RADIUS for remote authentication.
• D. A locally authenticated user account is authenticated directly through the fabric interconnect.

Answer: D

Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-0/b_UCSM_GUI_Configu

NEW QUESTION 12

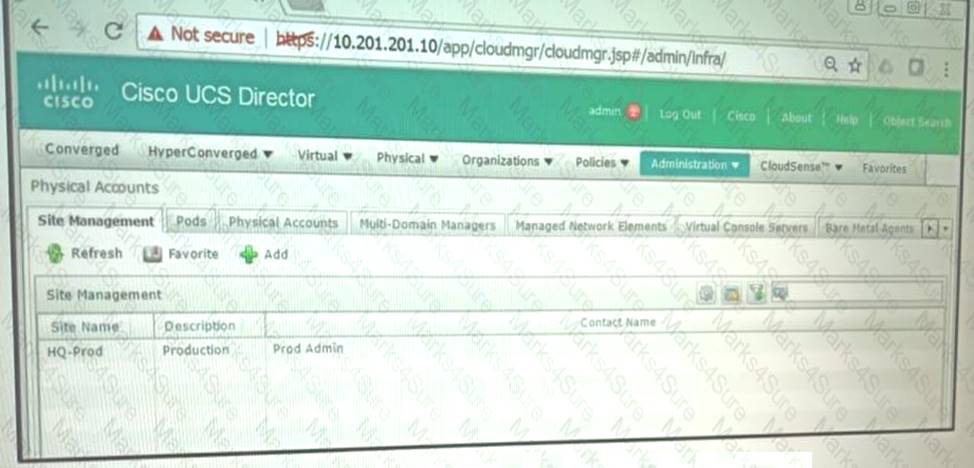

Refer to the Exhibit:

You are integrating Cisco UCS Director with the ACI fabric. Where do you create the account type?

• A. Pods
• B. Managed Network Elements
• C. Multi-Domain Managers
• D. Bare Metal Agents

Answer: C

NEW QUESTION 13

Which two AAA protocols are supported by a remote AAA database? (Choose two.)

• A. Microsoft Active Directory
• B. RADIUS
• C. 802.1X
• D. Kerberos
• E. LDAP

Answer: BE

Explanation:
Reference: https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_Configuration
4

NEW QUESTION 14

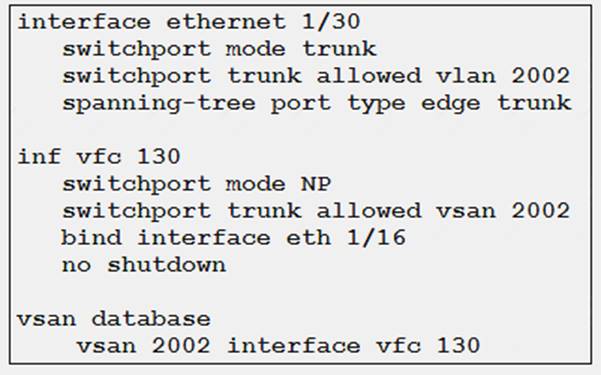

Refer to the exhibit.

Interface Ethernet 1/30 connects to which type of switch?

• A. an FCoE switch that has NPV enabled
• B. a Fibre Channel switch that has NPV enabled
• C. a Fibre Channel switch that has NPIV enabled
• D. an FCoE switch that has NPIV enabled

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/san_switching/503_n2_1/b_Cisco_n5

NEW QUESTION 15

Which maintenance action releases the assigned chassis ID for future use?

• A. Acknowledge chassis
• B. Reset CMOS
• C. Decommission chassis
• D. Remove chassis

Answer: C

Explanation:
Reference: http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/22/b_UCSM_GUI_Configura 86ACDE9D13C222A452

NEW QUESTION 16

In Cisco UCS Manager you must provide a user with the ability to manage alarms, alarm policies, logs, and Smart Call Home. The solution must minimize the number of permissions assigned to the user. Which role must you assign?

• A. Operations
• B. AAA Administrator
• C. Network Administrator
• D. Administrator

Answer: A

Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/AdminManagem b_UCSM_Admin_Mgmt_Guide_chapter_01.html

NEW QUESTION 17

When configuring roles in the Cisco UCS C-Series, which role should be assigned for a person who must be allowed to power on the server and install a hypervisor using virtual media, but not allowed to configure other Cisco Integrated Management Controller settings?

• A. VM admin
• B. user
• C. admin
• D. read-only

Answer: B

NEW QUESTION 18

Which of the following is not a feature of the Cisco Unified Computing System VIC-1280 adaptor?

• A. capable of up to 256 virtual interfaces
• B. supports FCoE
• C. supports Cisco VM-FEX
• D. compatible with the C- or B-Series Cisco Unified Computing System servers

Answer: D

NEW QUESTION 19

What is the maximum number of ports on a VMware vCenter Distributed Virtual Switch?

• A. 64
• B. 128
• C. 1024
• D. 4096
• E. 8192

Answer: D

NEW QUESTION 20

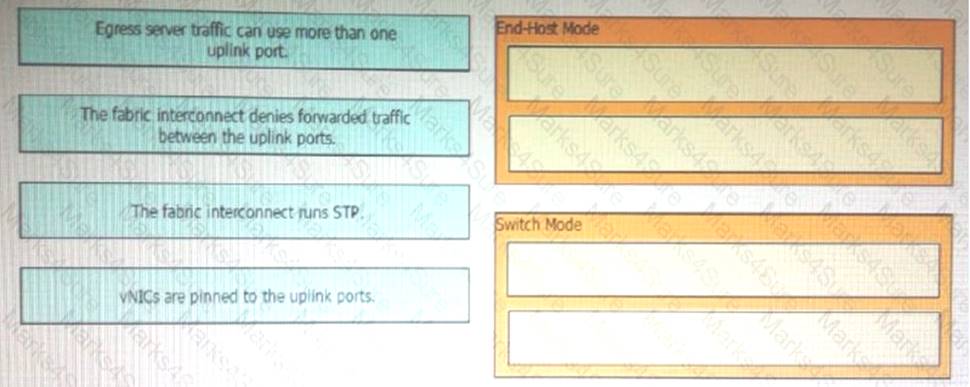

Drag and drop the fabric interconnect characteristics on the left to the correct Ethernet switching modes on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Egress server traffic can use more than one uplink port = End-Host Mode
The fabric interconnect denies forwarded traffic between the uplink ports = Switch mode The fabric interconnect runs STP = Switch Mode
vNic are pinned to the uplink ports = End-Host Mode

NEW QUESTION 21

You need to enable Cisco UCS Manager to support out-of-band IPv4 address access to the Cisco UCS KVM Direct launch page from a web browser.
What should you enable?

• A. SMASH CLP
• B. CIM XML
• C. SNMP
• D. CIMC Web Service

Answer: D

Explanation:
-Cisco UCS Manager supports out-of-band IPv4 address access to the Cisco UCS KVM Direct launch page from a web browser. To provide this access, you must enable the following service: CIMC Web Service
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/3-0/b_UCSM_GUI_User_G

NEW QUESTION 22

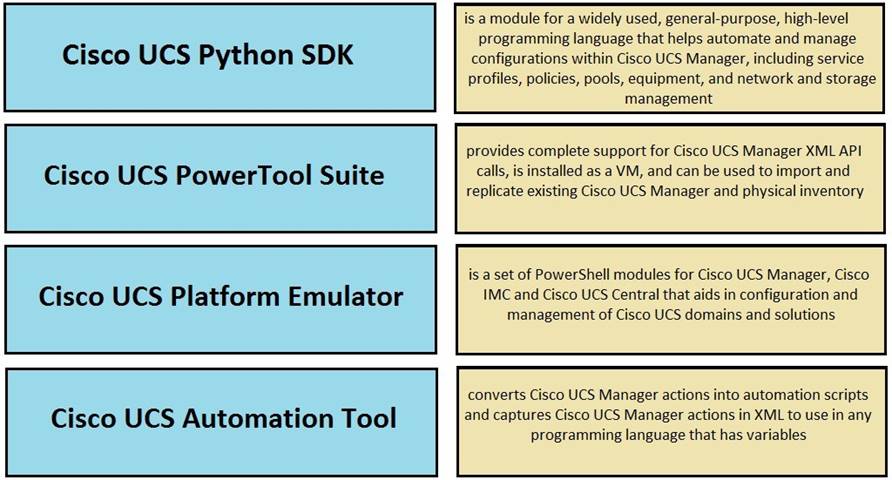

Drag and drop the scripting tools on the left to the correct definitions on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Cisco UCS Python SDK
(provides complete suppport for cisco ucs manager XML PAI calls,is installed as a Vm,and can be used to import and replicate existing cisco ucs manager and physical inventory )
Cisco UCS Platform Emulator
(is a module for widely used,general-purpose,high-level programming language that helps automate and manage configuration within cisco ucs manager ,including service profiles,policies ,pools,equipment,am=nd network and storage management)
Cisco UCS Automation Tool
(converts Cisco UCS Manager actions into automation scripts and captures Cisco UCS Manager actions in XML to use in any programming language that has variables )
Cisco UCS PowerTool Suite
(is a set of Powershell modules for cisco ucsmanager,cisco IMC and cisco ucs Central that aids in configuration and management of cisco ucs domains and solutions )

NEW QUESTION 23

You are using UCS version 2.4 or later and need to advertise the identity of a server by using LLDP instead of CDP. Which policy in the vNIC template accomplishes this goal?

• A. Ethernet adapter
• B. network control
• C. QoS
• D. LAN connectivity

Answer: D

NEW QUESTION 24

Which item describes the failure scenario called a "split-brain" in the Cisco Unified Computing System?

• A. Failure of the Cisco Unified Computing System L1-L2 network
• B. Failure of a Cisco Unified Computing System Chassis Management Controller
• C. Failure of a Cisco Unified Computing System I/O module
• D. Failure of a Cisco Unified Computing System Fabric Interconnect
• E. Failure of a Cisco Unified Computing System Chassis Management Switch

Answer: A

NEW QUESTION 25

Which actions must be taken in order to connect a NetAppFCoE storage system to a Cisco UCS system?

• A. Ensure that the Fibre Channel switching mode is set to Switching, and use the Fibre Channel ports on the Fabric Interconnects.
• B. Ensure that the Fibre Channel switching mode is set to Switching, and reconfigure the port to aFCoE Storage port.
• C. Ensure that the Fibre Channel switching mode is set to End-Host, and use the Ethernet ports on the Fabric Interconnects.
• D. Ensure that the Fibre Channel switching mode is set to Switching, and use the Ethernet ports on the Fabric Interconnects.

Answer: A

Explanation:
References:
http://www.renar.net/?p=148&lang=en https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/release/notes/UCS_28313.html

NEW QUESTION 26

You configure a service profile template from the Cisco UCS Manager GUI by using the Create Local Disk Configuration Policy option The No RAID local disk policy mode is selected and the Protect Configuration property is disabled. You create a service profile that is created from the service profile template. You apply the service profile to a server that has an operating system installed on a RAID-10 volume. Which statement about the server after it is associated to the service profile is true?

• A. The server has RAID-0 configured on the local disk.
• B. The server has RAID-1 configured on the local disk.
• C. The server has the local storage detached.
• D. The local disk of the server remains RAID-10.

Answer: C

NEW QUESTION 27
......
