Proper study guides for Replace Cisco Implementing Cisco Service Provider Advanced Routing Solutions (SPRI) certified begins with Cisco 300-510 preparation products which designed to deliver the 100% Correct 300-510 questions by making you pass the 300-510 test at your first time. Try the free 300-510 demo right now.
Also have 300-510 free dumps questions for you:
NEW QUESTION 1

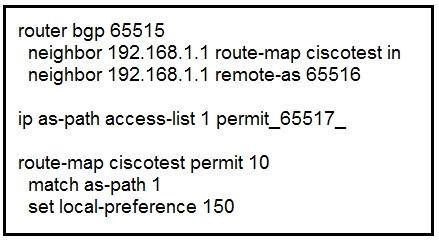

Refer to the exhibit. After troubleshooting BGP traffic steering issue, which action did the network operator take to achieve the correct effect of this configuration?
- A. Routes that have passed through AS 65517 have the local preference set to 150.
- B. Routes that have originated through AS 65517 have the local preference set to 150.
- C. Routes directly attached to AS 65517 have the local preference set to 150.
- D. Routes that have passed through AS 65517 have the local preference set to 150 and the traffic is denied.
Answer: A
NEW QUESTION 2
In a PIM-SM environment, which mechanism determines the traffic that a receiver receives?
- A. The receiver explicitly requests its desired traffic from the RP on the shared tree.
- B. The receiver explicitly requests traffic from a single source, which responds by forwarding all traffic.
- C. The RP on the shared tree floods traffic out of all PIM configured interfaces.
- D. The receiver explicitly requests traffic from each desired source, which responds by sending all traffic.
Answer: D
NEW QUESTION 3
You have configured MSDP peering between two autonomous systems that pass traffic between two sites, but the peering has failed to come up. Which task do you perform to begin troubleshooting the problem?
- A. Verify that multicast has been disabled globally
- B. Verify that PIM-DM is configured on the source interface
- C. Verify that both source interfaces are reachable from both peers
- D. Verify that the two MSDP peers allow asymmetric routing
Answer: C
NEW QUESTION 4

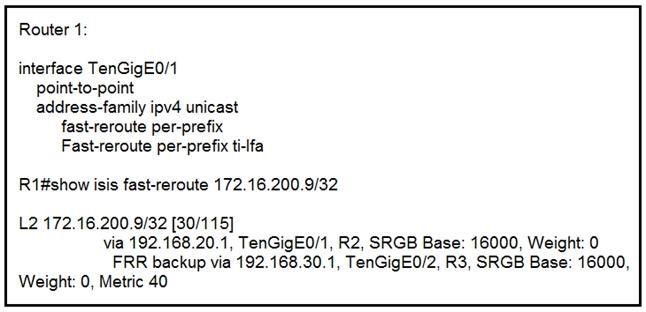

Refer to the exhibit. Router 1 is connected to router 2 on interface TenGigE0/1. Which interface provides the alternate path to 172.16.200.9/32 when the link between router 1 and router 2 goes down?
- A. TenGigE0/1 interface provides the alternate path
- B. A backup path must be statically installed
- C. TenGigE0/2 interface provides the alternate path
- D. A primary path must be manually installed
Answer: C
NEW QUESTION 5
Which output from the show isis interface command helps an engineer troubleshoot an IS-IS adjacency problem on a Cisco IOS-XR platform?
- A. metric
- B. priority
- C. circuit type
- D. hello interval
Answer: D
NEW QUESTION 6
For which reason can two devices fail to establish an OSPF neighbor relationship?
- A. The two devices have different process IDs
- B. The two devices have different network types
- C. The two devices have different router IDs
- D. The two devices have the same area ID
Answer: B
NEW QUESTION 7
You have configured routing policies on a Cisco IOS XR device with routing policy language. Which two statements about the routing policies are true? (Choose two.)
- A. The routing policies affect BGP-related routes only.
- B. If you make edits to an existing routing policy without pasting the full policy into the CLI, the previous policy is overwritten.
- C. You can change an existing routing policy by editing individual statements.
- D. The routing policies are implemented in a sequential manner.
- E. The routing policies are implemented using route maps.
Answer: CD
NEW QUESTION 8
Refer to the exhibit. An engineer is troubleshooting an OSPF issue. Router 1 has a neighbor relationship with router 2. Only router 1 classful EIGRP routes can be seen on router 2. In order for all EIGRP routes to be redistributed correctly, which action should be taken?
- A. Router 1 must have the keyword subnets included in the redistribution command for all EIGRP routes to be redistributed.
- B. Router 1 must remove the AS number 1 from the redistribution command for all EIGRP routes to be redistributed.
- C. Router 1 must have the keyword ospf-metric included in the redistribution command for all EIGRP routes to be redistributed.
- D. Router 1 must have the keyword metric-type 1 included in the redistribution command for all EIGRP routes to be redistributed.
Answer: A
NEW QUESTION 9
DRAG DROP
Drag and drop the attributes for the BGP route selection on the left into the correct order on the right. Not all options are used.
Select and Place:
- A. Mastered
- B. Not Mastered
Answer: A
NEW QUESTION 10
A network engineer is troubleshooting OSPF multiarea. Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?
- A. hierarchical CLI
- B. DR support for topology management
- C. routing process enabled by default on all interfaces
- D. show ip ospf topology command
Answer: A
NEW QUESTION 11
Refer to the exhibit. Which task must you perform on interface g1/0/0 to complete the SSM implementation?
- A. configure OSPFv3
- B. enable CDP
- C. disable IGMP
- D. configure IGMPv3
Answer: D
NEW QUESTION 12

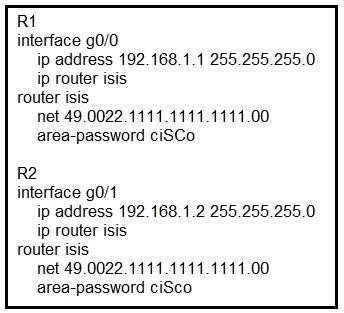

Refer to the exhibit. After you applied these configurations to routers R1 and R2, the two devices could not form a neighbor relationship. Which reason for the problem is the most likely?
- A. The two routers cannot authenticate with one another.
- B. The two routers have the same area ID.
- C. The two routers have the same network ID.
- D. The two routers have different IS-types.
Answer: C
NEW QUESTION 13

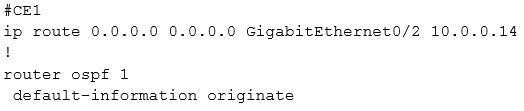

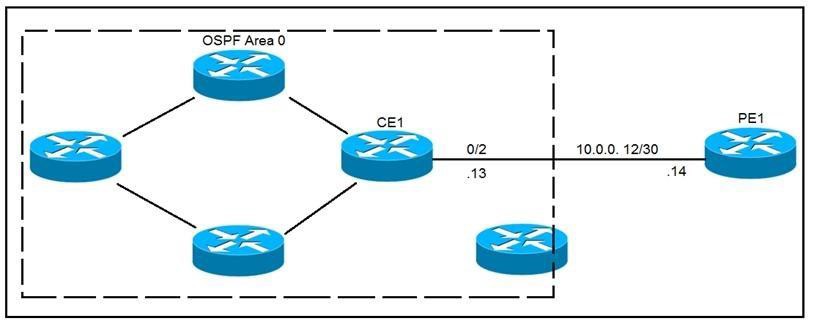

Refer to the exhibit. CE1 is the gateway router into the provider network via PE1. A network operator must inject a default route into OSPF area 0. All devices inside area 0 must be able to reach PE1. Which configuration achieves this goal?
- A.
B.
Answer: B
NEW QUESTION 14

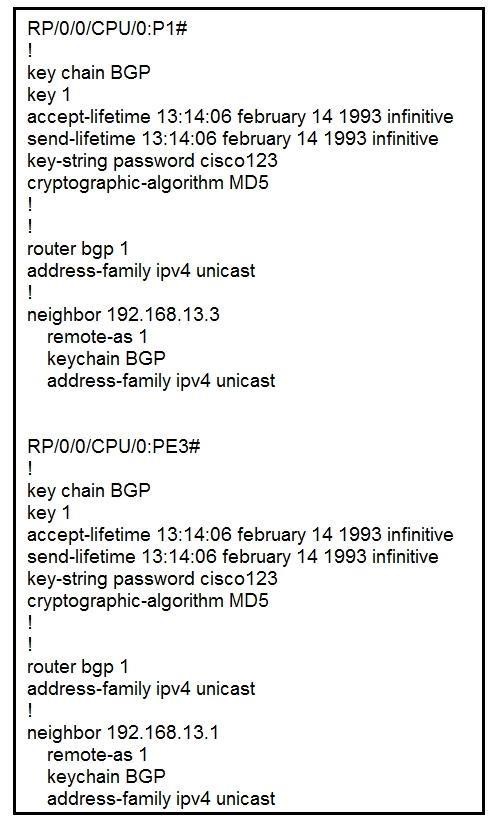

Refer to the exhibit. P1 and PE3 Cisco IOS XR routers are directly connected and have this configuration applied. The BGP session is not coming up. Assume that there is no IP reachability problem and both routers can open tcp port 179 to each other. Which two actions fix the issue? (Choose two.)
- A. Change MD5 to HMAC-SHA1-12
- B. Change MD5 to HMAC-ESP
- C. Change MD5 to SHA-1
- D. Change MD5 to HMAC-MD5
- E. Remove the send and accept lifetime under key 1
Answer: AD
NEW QUESTION 15

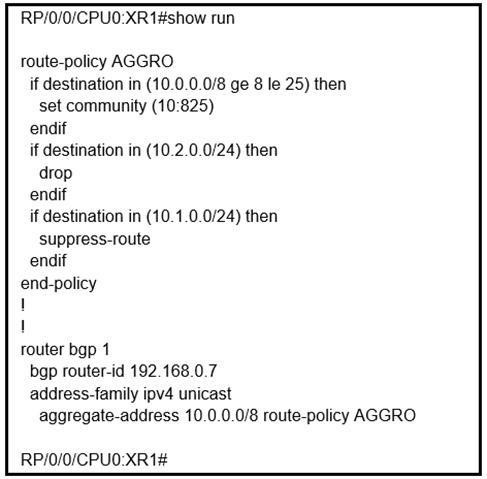

Refer to the exhibit. A network operator is working to filter routes from being advertised that are covered under an aggregate announcement. The receiving router of the aggregate announcement block is still getting some of the more specific routes plus the aggregate. Which configuration change ensures that only the aggregate is announced now and in the future if other networks are to be added?
- A. Configure the summary-only keyword on the aggregate command
- B. Set each specific route in the AGGRO policy to drop instead of suppress-route
- C. Filter the routes on the receiving router
- D. Set each specific route in the AGGRO policy to remove instead of suppress-route
Answer: A
NEW QUESTION 16
Which feature is used in multicast routing to prevent loops?
- A. STP
- B. inverse ARP
- C. RPF
- D. split horizon
Answer: C
NEW QUESTION 17
Which command is used to enable BIDIR-PIM under global configuration mode for Cisco IOS XE Sofware?
- A. ip pim bidir-enable
- B. ipv4 pim bidir-enable
- C. ip multicast-routing
- D. ip pim bidir
Answer: A
NEW QUESTION 18
Refer to the exhibit. An engineer is addressing an IS-IS design issue which is running within the topology. All links are running on FastEthernet, except the link between R5 and R4, which is Gigabit Ethernet. Which statement about the design is true?
- A. R4 prefer to reach R5 using R1 as the next hop
- B. All links have equal cost if the default metric is used
- C. R5 prefers to use R4 as the next hop for all routes
- D. R1 prefer to use R5 as the next hop to reach R4
Answer: B
NEW QUESTION 19
Which task is performed when troubleshooting LDP?
- A. Execute the ping utility to generate information about the MAC addresses used along the path
- B. Verify that MPLS is disabled globally and enabled on the necessary interfaces in a per-interface basis
- C. Execute the traceroute utility to generate information about the labels used along the path
- D. Verify that Cisco Express Forwarding has been disabled on the network
Answer: C
NEW QUESTION 20
For which reason do you deploy BGP confederations within a BGP transit backbone?
- A. to support a larger number of eBGP peer sessions
- B. to increase the number of routes that can be redistributed between the running IGP and BGP
- C. to reduce the number of eBGP routes that must be shared between autonomous systems
- D. to reduce the number of iBGP peering sessions
Answer: D
NEW QUESTION 21
Which two routing protocols have extensions capable of running SRv6? (Choose two.)
- A. OSPF
- B. BGP
- C. RIP
- D. IGRP
- E. EIGRP
Answer: AB
NEW QUESTION 22
Refer to the exhibit. Which effect of this configuration is true?
- A. It sets the keepalive timer to 30 seconds and the hold timer to 240 seconds.
- B. It sets the keepalive timer to 30 milliseconds and the hold timer to 240 milliseconds
- C. It sets the hold timer to 30 milliseconds and the keepalive timer to 240 milliseconds
- D. It sets the hold timer to 30 seconds and the keepalive timer to 240 seconds
Answer: A
NEW QUESTION 23
......
