How Many Questions Of 7130X Free Samples

NEW QUESTION 1
In Avaya Session Border Controller for Enterprise (SBCE) 7.x, you need to download the 46xxsettings.txt file to a Remote Worker device.
What needs to be configured under DMZ Services > Relay Services?

• A. Application Relay and File Transfer
• B. Reverse Proxy
• C. Application Relay
• D. Application Relay and Reverse Proxy

Answer: C

Explanation:
Relay Services are used to define how file transfers (e.g., for phone firmware upgrades and configuration), are routed to the Remote Worker endpoints.
Example: 2 For accessing the file server using HTTPS protocol

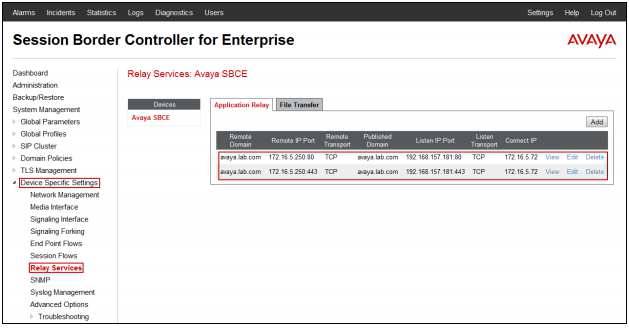

The following screenshot shows the newly created Relay Services

References: Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura Communication Manager Rel. 6.3 and Avaya Aura Session Managers Rel. 6.3 - Issue 1.0, page 73
https://downloads.avaya.com/css/P8/documents/100183254

NEW QUESTION 2
An Avaya Aura® Messaging (AAM) server intended to store Voice Messages in Avaya Message Store Mode, and you are configuring that server for integration with an Avaya Aura® Core.
In Messaging Administration > Server Settings > Server Role/AxC Address, which Server Role must be chosen at the “Roles for this server” field?

• A. Application Only
• B. Storage Only
• C. Storage & Application
• D. AMSM

Answer: C

Explanation:
Incorrect Answers:
B: When you select a storage-only role for the server, SMI does not display the following pages, which are specific to the application role:
* Server Information: Voice Channels (Application), and Cache Statistics (Application)
Etc.
References: Administering Avaya Aura® Messaging 6.3.3, Release 6.3.3 (February 2017), page 44
https://downloads.avaya.com/css/P8/documents/101013158

NEW QUESTION 3
In Avaya Aura® Messaging 6.3, which statement is true about Avaya Aura® Messaging (AAM) capacities of a system utilizing the Standard Capacity (non-High Capacity) Message Store template?

• A. One Message Store Server supports up to 60000 user mailboxes and you can have 5 active + 1 Redundant Application Servers in a cluster.
• B. One Message Store Server supports up to 6000 user mailboxes and you can have 3 active + 1 Redundant Application Servers in a cluster.
• C. One Message Store Server supports up to 600 user mailboxes and you can have 5 active + 1 Redundant Application Servers in a cluster.
• D. One Message Store Server supports up to 1000 user mailboxes and you can have 3 active + 1 Redundant Application Servers in a cluster.

Answer: B

Explanation:
Dedicated AxC/Directory server: A physical server that manages notification capabilities and the LDAP database and provides communications between application servers and the thirdparty storage server. This server also stores user properties and name and greeting recordings.
Not all configurations require a dedicated AxC/Directory server because the AxC/Directory role runs on the Avaya-provided message store. You only need a
dedicated AxC/Directory server for:
Release 6.2 and earlier Messaging systems with a third-party storage server.
Release 6.3 or later systems with more than one application server, or more than 6000 users using a third-party storage server, such as Microsoft Exchange.
References: Avaya Aura® Messaging Overview and Specification, Release 6.3.2 (January 2015) , page 20
https://downloads.avaya.com/css/P8/documents/101004642

NEW QUESTION 4
When configuring a SIP Entity for Avaya Aura® Messaging (AAM) in Avaya Aura® System Manager, which Type of SIP entity needs to be selected?

• A. Messaging
• B. Avaya Aura® Messaging
• C. Communication Manager Messaging
• D. OtherCorrect

Answer: D

Explanation:
Define SIP Entity
Expand Elements, Routing and select SIP Entities from the left navigation menu.
Click New (not shown). In the General section, enter the following values and use default values for remaining fields.
* Name: Enter an identifier for the SIP Entity
* FQDN or IP Address: Enter IP address of Avaya Aura® Messaging.
* Type: Select “Other”
Etc.
References: Application Notes for Configuring Avaya Aura® Messaging 6.1 as a Voice Messaging Solution for Avaya Aura® Communication Manager 6.0.1 Feature
& Evolution Server Using SIP Trunks and Avaya Aura® Session Manager 6.1 – Issue 1.0 , page 22
https://www.devconnectprogram.com/fileMedia/download/08ad7375-7c2e-4767-929f-15f4e8130a0d

NEW QUESTION 5
In which two locations is the Switch Password configured?

• A. In ‘ip-services’ form on Avaya Aura® Communication Manager (CM) and in ‘TSAPI link’ on Avaya Aura® Application Enablement Services (AES)
• B. In ‘ip-services’ form on Avaya Aura® Communication Manager (CM) and in ‘Switch Connection’ on Avaya Aura® Application Enablement Services (AES)
• C. In ‘cti-link’ form on Avaya Aura® Communication Manager (CM) and in ‘Switch Connection’ on Avaya Aura® Application Enablement Services (AES)
• D. In ‘cti-link’ form on Avaya Aura® Communication Manager (CM) and in ‘TSAPI link’ on Avaya Aura® Application Enablement Services (AES)

Answer: B

Explanation:
Enabling AE Services refers to administering the transport link between Communication Manager and AE Services.
Procedure
* 1. Type change ip-services.
Communication Manager displays the IP SERVICES form
* 2. Complete Page 1 of the IP SERVICES form
* 3. Complete Page 3 of the IP SERVICES form as follows.
* a. In the AE Services Server field, type the name of the AE Services server
* b. In the Password field, create a password.
This is the password that the AE Services administrator must set on the AE Server (Communication Manager Interface > Switch Connections > Edit Connection >
Switch Password). The passwords must exactly match on both Communication Manager and the AE Services server.
References: Avaya Aura Application Enablement Services Administration and Maintenance Guide, Release 6.3 (June 2014) , page 26
https://downloads.avaya.com/css/P8/documents/100171737

NEW QUESTION 6
A customer reports that when using Presence services, the users cannot see the Presence status.
Which two tools are used to trace a PUBLISH message. In the Avaya Breeze™ server? (Choose two.)

• A. traceSBC
• B. traceCE
• C. traceSM
• D. tracePRS
• E. tracePS

Answer: CE

NEW QUESTION 7
Before SIP Trunking configuration can begin, which state must the Avaya Session Border Controller
for Enterprise (SBCE) be in?

• A. Registered
• B. Provisioned
• C. Commissioned
• D. Ready

Answer: C

Explanation:

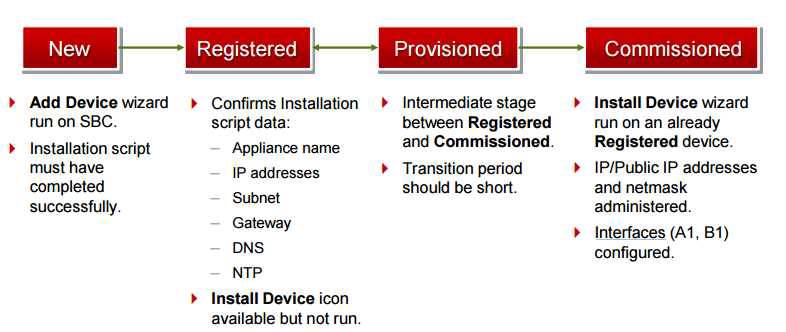

Prerequisite Conditions for SIP Trunking
Starting point for SIP-trunking administration:
System Management > Installed tab shows SBC(s) Commissioned indicates a successful initial console
configuration.
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance
(2012), page 302

NEW QUESTION 8
Avaya Aura® Presence Services 7.x is implemented on Avaya Breeze™ (formerly Engagement Development Platform (EDP)).
When looking at Elements > Breeze > Service Management > Services, which status would you expect for a Presence Services snap-in that is ready to support Avaya Aura® Presence Services?

• A. Accepting
• B. Loaded
• C. Installed
• D. Active

Answer: A

NEW QUESTION 9
To which other component does the Avaya Aura® Application Enablement Services (AES) Switch Connections connect?

• A. Avaya Aura® Media Server (AAMS) using H.323
• B. Avaya Aura® Session Manager (SM) using SIP
• C. Avaya Aura® Communications Manager (CM) using H.323
• D. Avaya Aura® Communications Manager (CM) using SIP

Answer: C

Explanation:
Adding a switch connection
The procedure include the following steps:
* 1.From theAE Services Management Console main menu, select Communication Manager Interface > Switch Connections.
* 2. On the Switch Connections page, in the Add Connection field, type a switch connection name (for example Switch1)
For the Secure H323 Connection check box, do one of the following:
* For Communication Manager6.3.6 or later and TLS for the H.323 Signaling Channel (normally associated with FIPS Mode), select the Secure H323 Connection
check box.
* For any previous release of Communication Managerwithout TLS for the H.323 Signaling Channel, uncheck the Secure H323 Connection check box.
Etc.
References: Avaya Aura® Application Enablement Services Administration and Maintenance Guide, page 73
https://downloads.avaya.com/css/P8/documents/100171737

NEW QUESTION 10
In Avaya Session Border Controller for Enterprise (SBCE), what is the default state of an Interface?

• A. Deployed
• B. Enabled
• C. Disabled
• D. Active

Answer: C

Explanation:
Example:
Commission the SBC—SBC Configuration

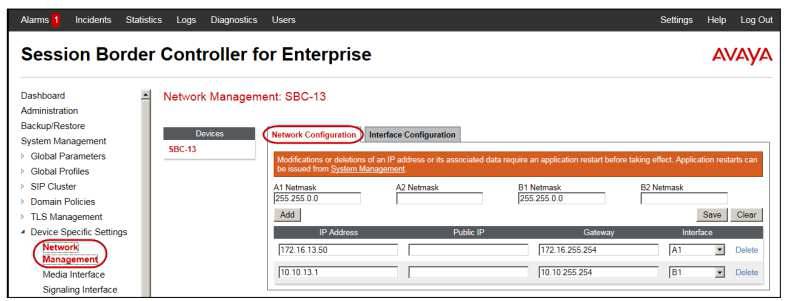

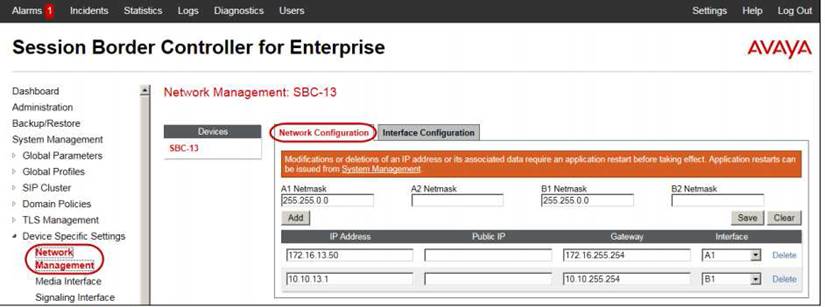

* 1. The A1 and B1 interfaces display on the Network Configuration tab.

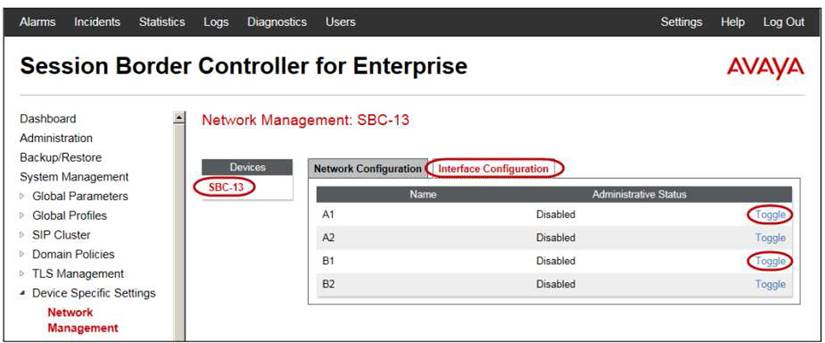

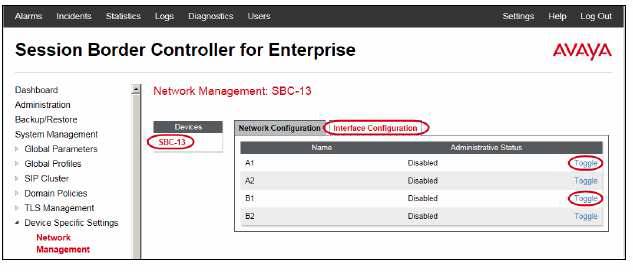

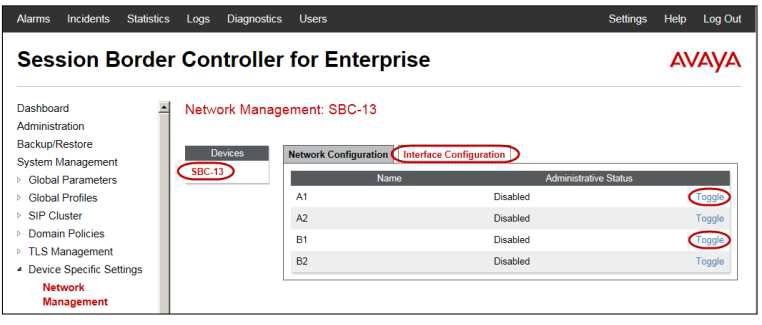

* 2. Click on the Interface Configuration tab:

* 3. Click the Toggle link for both the A1 and the B1 interfaces.

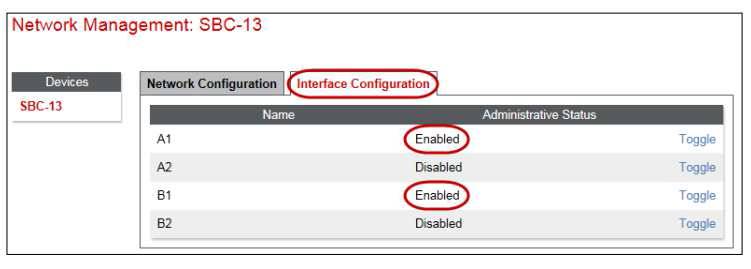

The Administrative Status for both A1 and B1 changes to Enabled:
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 203

NEW QUESTION 11
What are three ways of accessing Avaya Aura® Application Enablement Services (AES) to perform administration? (Choose three.)

• A. with an Open X.11 terminal window
• B. with web access
• C. with remote access using Rlogin
• D. with local access using a system console
• E. with remote access using SSH

Answer: BDE

Explanation:
B: You can use a Web browser to access the Application Enablement Services Management Console (AE
Services Management Console).
DE: Administrators can access the AE Services Linux shell (command prompt) either locally using a system
console or remotely using a secure shell (ssh) client. This access method applies primarily to AE Services
Technicians (craft users) who perform specific tasks, such as viewing trace logs, installing patches, and so
forth.
References: Avaya Aura® Application Enablement Services Administration and Maintenance Guide , page 52
https://downloads.avaya.com/css/P8/documents/100171737

NEW QUESTION 12
To watch Avaya Session Border Controller for Enterprise (SBCE) messages in real-time as they pass
through the SBCE, which tool on the SIP command line do you use?

• A. traceSBC
• B. traceSM –m
• C. traceTOOL
• D. trace

Answer: A

Explanation:
The tcpdump tool is the main troubleshooting tool of Avaya SBCE, which can capture network traffic.
Using tcpdump is a reliable way to analyze the information arriving to and sent from the SBC.
However, tcpdump has its own limitations, which can make troubleshooting difficult and time
consuming. This traditional tool is not useful in handling encrypted traffic and real-time troubleshooting.
The traceSBC tool offers solutions for both issues.
In Real-time mode, traceSBC must be on active Avaya SBCE. traceSBC is started without specifying a
file in the command line parameters. The tool automatically starts processing the log files. The live
capture can be started and stopped anytime without affecting service.
Example:
# traceSBC
References: Troubleshooting and Maintaining Avaya Session Border Controller for Enterprise
(December 2015), page 27
https://downloads.avaya.com/css/P8/documents/101014063

NEW QUESTION 13
Which access control method is used by the Avaya Aura® Application Enablement Services (AES) server for administrators?

• A. Single Administrator simple password login
• B. Challenge-Response shared-key method only
• C. System Manager AES Management Menu
• D. Role-Based Access Control

Answer: D

Explanation:
Role Based Access Control (RBAC)
Access to AE Services Management Console Web pages can be restricted by user authorization level. The operations that users are allowed to perform such as
read, edit and delete can also be restricted.
References: Avaya Aura Application Enablement Services Overview and Specification, Release 7.0.1, Issue 2 (June 2016), page 20
https://downloads.avaya.com/css/P8/documents/101014052

NEW QUESTION 14
On Avaya Session Border Controller for Enterprise (SBCE), where do you access the tool that displays SIP messages, in real time, as they pass through the SBCE?

• A. from Avaya Aura® System Manager, navigate to “Session Border Controller for Enterprise > SBCE Administration” menu
• B. from the SBCE EMS Web Console
• C. from the SBCE Server command line via SSH session, using PuTTY
• D. from the traceSIP client installed on a local PC

Answer: C

Explanation:
Stat the tue Tracing Tools, TraceSM, SSH to Session Manager
* 1. Launch PuTTY (or similar client application) for a SSH session to Session Manager (port 22). Use the Session Manager IP Address (172.16.255.107).
* 2. Log in.
* 3. At the Session Manager command line type traceSM –x and press Enter.
Note: The traceSM tool shows the SIP call flow in Session Manager.
It gives insight into Session Manager’s decisions.
Benefit: can filter certain types of SIP messages
Shows the state of the dialog
Displays changes in real time
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 485

NEW QUESTION 15
Which component converts WebRTC Media Stream to SIP Media Stream?

• A. HTTP Reverse Proxy
• B. Avaya Aura® Media Server (AAMS)
• C. STUN/TURN server
• D. G.450/430 or G.650 Medpro board

Answer: C

Explanation:
Provisioning Avaya Aura® Media Server for the WebRTC Snap-in.
Procedure
* 1. Log in to the Avaya Aura®
Media Server Element Manager.
* 2. Check that Avaya Aura®
Media Server nodes and routes are set up correctly.
See Deploying Avaya Breeze™ for details on configuring Avaya Aura®
Media Server forAvaya Breeze™.
* 3. Go to System Configuration > Server Profile > General Settings, enable Firewall NAT Tunneling Media Processor and then click Save.
* 4. Go to System Configuration > Signaling Protocols > SIP > General Settings, enable Always use SIP default outbound proxy, and then click Save.
Go to System Configuration > Media Processing > ICE > TURN/STUN Servers > Accounts and create a TURN/STUN account. This account ID and password must
match the account created on the Avaya SBCE.
* 6. Go to System Configuration > Media Processing > ICE > TURN/STUN Servers > Servers to add the TURN/STUN connection to the Avaya SBCE server
Etc.
References: Avaya WebRTC Snap-in Reference, Release 3.1 (May 2016), page 23
https://downloads.avaya.com/css/P8/documents/101013939

NEW QUESTION 16
Which statement about Avaya Aura® Presence Services 7.x snap-in licensing is true?

• A. It requires an instance-license.
• B. It requires a per-user license.
• C. It does not require a license to work.
• D. It requires a license file for each snap-in installed.

Answer: C

Explanation:
Presence Services snap-in does not require a license to work.
References: Avaya Aura® Presence Services Snap-in Reference. Release 7.0.1 (December 2016), page 17
https://downloads.avaya.com/css/P8/documents/101013646

NEW QUESTION 17
What are the three components of Avaya Aura® Messaging (AAM)? (Choose three.)

• A. Messaging Distributor
• B. Application Server
• C. Messaging Store
• D. AxC/Directory
• E. SM100 Module

Answer: BCD

Explanation:
The AXC connector is always co-resident with the Avaya message store.

References: Administering Avaya Aura® Messaging Release 6.2, Issue 2.2 (December 2013)
https://downloads.avaya.com/css/P8/documents/100172127

NEW QUESTION 18
After the initial provisioning script has been run you see your Avaya Session Border Controller for
Enterprise (SBCE) displaying a Registered state in the Web GUI. You click on the install link in the EMS
System Management > Devices menu to continue the installation.
After displaying a status of Provisioning for a short while, which status does the SBCE display?

• A. Commissioned
• B. Up
• C. Busyout
• D. Maintenance-Busy

Answer: A

Explanation:
SBC states:

References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance
(2012), page 201

NEW QUESTION 19
Which statement about enabling IM and Presence for a user is true?

• A. In SMGR, edit the Communication Profile of the user to assign an Avaya E.164 handle and check the Presence profile checkbox.
• B. In SMGR, edit the Communication Profile of the user to assign an Avaya SIP handle and check the Presence profile checkbox.
• C. In SMGR, edit the Communication Profile of the user to assign a XMPP handle and check the Presence profile checkbox.
• D. In SMGR, edit the Communication Profile of the user to assign an Avaya Presence/IM handle and check the Presence profile checkbox.

Answer: B

Explanation:
Communication Profile tab: Presence Profile
Fields include:
* The SIP Entity field used to route SIP based messages through the Presence Services.
* IM Gateway The IP address of the IM gateway
Note: Avaya SMGR stands for Avaya System Manager.
References: Administering Avaya Aura System Manager for Release 6.3.11 and later, Release 6.3 November 2016, page 554
https://downloads.avaya.com/css/P8/documents/101008185

NEW QUESTION 20
For an Avaya SIP telephone, working as a Remote Worker via the Avaya Session Border Controller for Enterprise (SBCE), which IP address should be configured in the Server List of the one-X® Communicator?

• A. the SBCE Internal Interface allocated for Mobile Workspace Endpoint
• B. the SBCE External Interface allocated for Mobile Workspace Endpoint
• C. the Internal Avaya Aura® Session Manager SM100 IP Address
• D. the Avaya Aura® Session Manager External Interface allocated for Mobile Workspace Endpoints.

Answer: D

Explanation:
Remote Worker Avaya one-X Communicator Configuration
The following screens illustrate Avaya one-X Communicator administration settings for the Remote Worker used in the reference configuration.
Example:
* 1. On the Avaya one-X Communicator application running on the PC, click on the Settings icon on the top right to display the Settings window.
* 2. Click on Telephony, the General Settings window will appear. The following values were used in the reference configuration:
Under Using: select SIP (SIP must be selected; H.323 is not supported for Remote
Workers).
* Under Server List, click Add (the Add Server window to the right will appear).
* Under Proxy Server enter 192.168.157.180 (This is one of the two “public” IP addresses for interface B1 on the Avaya SBCE used for Remote Worker access to
Session Manager (public IP not used for relay services).
Etc.
References: Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura® Communication Manager Rel. 6.3 and Avaya
Aura® Session Managers Rel. 6.3 - Issue 1.0, page 81
https://downloads.avaya.com/css/P8/documents/100183254

NEW QUESTION 21
Which three functionalities does WebRTC provide? (Choose three.)

• A. NAT / Firewall Traversal
• B. adds click-to-call capabilities from a web application to an Avaya endpoint
• C. Internet-friendly codecs and Privacy
• D. real-time audio and video conferencing

Answer: ABD

Explanation:
* One of the primary differentiating features for the WebRTC Snap-in is that the web application handles authentication and authorization of calls. This includes the
capability to assert a calling user’s phone number and restrict the numbers that can be called.
* The Avaya SBCE enables secure firewall traversal for HTTP and SRTP packets, facilitates sending DTLS to provide secured key exchange for the SRTP flow,
and takes care of all security requirements mentioned in the TURN protocol for the solution.
* WebRTC can be a game changer for enterprise communications and customer engagement. Enterprises can now add real-time communications to any website.
References: Avaya WebRTC Snap-in Reference, Release 3.1 (May 2016), page 9
https://downloads.avaya.com/css/P8/documents/101013939

NEW QUESTION 22
From a remote worker’s SIP Endpoint connected via Mobile Workspace, which tool is used to trace the successful way through Avaya Session Border Controller for Enterprise (SBCE) of an Invite message?

• A. traceRT
• B. traceSM
• C. traceMW
• D. traceSBC

Answer: B

Explanation:
traceSM is an interactive perl script that allows an administrator to capture, view, and save call processing
activity on a Session Manager. While not as powerful or versatile as wireshark, traceSM is absolutely essential when it comes to working with Avaya SIP. First off, it allows you to view SIP messages even if they have been encrypted with TLS.

NEW QUESTION 23
After running the Install wizard on Avaya Session Border Controller for Enterprise (SBCE), you added a Public Outside IP address to the B1 interface. You try to ping this IP address from a PC in the same subnet but it falls.
What would you do first to resolve the issue?

• A. Restart Applications.
• B. Set the Default Gateway router IP address, navigate to the Interfaces and Enable the B1 Interface.
• C. Reboot SBCE.
• D. Navigate to Device Specific Settings > Network Management > Interfaces and Enable the B1 interface.

Answer: D

Explanation:
The interface might need to be enabled.
* 1. The A1 and B1 interfaces display on the Network Configuration tab.

* 2. Click on the Interface Configuration tab.

* 3. Click the Toggle link for both the A1 and the B1 interfaces.
The Administrative Status for both A1 and B1 changes to Enabled
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 204

NEW QUESTION 24
In the Avaya Session Border Controller for Enterprise (SBCE), before a traffic carrying Network Interface (A1 or B1) can be pinged, to which state do you have to toggle the status on Device Specific Settings > Network Management / Interfaces?

• A. Enabled
• B. In-Service
• C. Accept Service
• D. Active

Answer: A

Explanation:
Commission the SBC—SBC Configuration
* 1. The A1 and B1 interfaces display on the Network Configuration tab:

* 2. Click on the Interface Configuration tab:

* 3. Click the Toggle link for both the A1 and the B1 interfaces.
The Administrative Status for both A1 and B1 changes to Enabled:

References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 203

NEW QUESTION 25
The Avaya WebRTC solution uses the web intensively to make media calls from a standard web browser in the internet, into internal and secure communication premises in the enterprise.
Which statement about security between the Enterprise-edge and those standard Web browsers in the internet is true?

• A. A trust relationship based on certificates must be built to make WebRTC work.
• B. No trust relationship exists between enterprise edge security and web browsers; therefore, the security strategy is based on an Authorization Token instead.
• C. There must be a VPN connection between the Web Browser and the Enterprise-edge to build a WebRTC link.
• D. WebRTC only works within the Enterprise networ
• E. External Web Browsers must connect through an Avaya Session Border Controller for Enterprise (SBCE) via a SIP trunk.

Answer: B

Explanation:
Validation of the authorization token.
The WebRTC Snap-in will validate the authorization token created and encrypted by the web server. If the snap-in can decrypt the token and ensure that the time stamp is valid, it knows that the incoming HTTP request is valid. The time stamp will usually be short lived; on the order of 5-10seconds to protect against reply attacks.
References: Avaya WebRTC Snap-in Reference, Release 3.1 (May 2016), page 27
https://downloads.avaya.com/css/P8/documents/101013939

NEW QUESTION 26
......
