Precise Fortinet NSE7_LED-7.0 Actual Exam Online

NEW QUESTION 1
An administrator is testing the connectivity for a new VLAN The devices in the VLAN are connected to a FortiSwitch device that is managed by FortiGate Quarantine is disabled on FortiGate
While testing the administrator noticed that devices can ping FortiGate and FortiGate can ping the devices The administrator also noticed that inter-VLAN communication works However intra-VLAN communication does not work
Which scenario is likely to cause this issue?

• A. Access VLAN is enabled on the VLAN
• B. The native VLAN configured on the ports is incorrect
• C. The FortiSwitch MAC address table is missing entries
• D. The FortiGate ARP table is missing entries

Answer: C

Explanation:
According to the scenario, the devices in the VLAN are connected to a FortiSwitch device that is managed by FortiGate. Quarantine is disabled on FortiGate, which means that the devices are not blocked by any security policy. The devices can ping FortiGate and FortiGate can ping the devices, which means that the IP connectivity is working. Inter-VLAN communication works, which means that the routing between VLANs is working. However, intra-VLAN communication does not work, which means that the switching within the VLAN is not working. Therefore, option C is true because the FortiSwitch MAC address table is missing entries, which means that the FortiSwitch does not know how to forward frames to the destination MAC addresses within the VLAN. Option A is false because access VLAN is enabled on the VLAN, which means that the VLAN ID is added to the frames on ingress and removed on egress. This does not affect intra-VLAN communication. Option B is false because the native VLAN configured on the ports is incorrect, which means that the frames on the native VLAN are not tagged with a VLAN ID. This does not affect intra-VLAN communication. Option D is false because the FortiGate ARP table is missing entries, which means that FortiGate does not know how to map IP addresses to MAC addresses. This does not affect intra-VLAN communication.

NEW QUESTION 2
What is the purpose of enabling Windows Active Directory Domain Authentication on FortiAuthenticator?

• A. It enables FortiAuthenticator to use Windows administrator credentials to perform an LDAP lookup for a user search
• B. It enables FortiAuthenticator to use a Windows CA certificate when authenticating RADIUS users
• C. It enables FortiAuthenticator to import users from Windows AD
• D. It enables FortiAuthenticator to register itself as a Windows trusted device to proxy authentication using Kerberos

Answer: D

Explanation:
According to the FortiAuthenticator Administration Guide2, “Windows Active Directory domain authentication enables FortiAuthenticator to join a Windows Active Directory domain as a machine entity and proxy authentication requests using Kerberos.” Therefore, option D is true because it describes the purpose of enabling Windows Active Directory domain authentication on FortiAuthenticator. Option A is false because FortiAuthenticator does not need Windows administrator credentials to perform an LDAP lookup for a user search. Option B is false because FortiAuthenticator does not use a Windows CA certificate when authenticating RADIUS users, but rather its own CA certificate. Option C is false because FortiAuthenticator does not import users from Windows AD, but rather synchronizes them using LDAP or FSSO.

NEW QUESTION 3

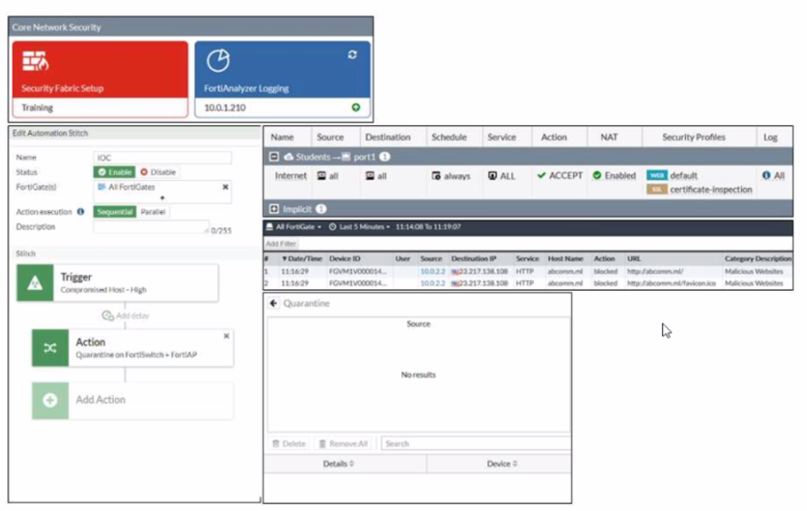

Refer to the exhibit.

Examine the FortiGate configuration FortiAnalyzer logs and FortiGate widget shown in the exhibit
An administrator is testing the Security Fabric quarantine automation The administrator added FortiAnalyzer to the Security Fabric and configured an automation stitch to automatically quarantine compromised devices The test device (::.:.:.!) s connected to a managed Fort Switch dev :e
After trying to access a malicious website from the test device, the administrator verifies that FortiAnalyzer has a log (or the test connection However the device is not getting quarantined by FortiGate as shown in the quarantine widget
Which two scenarios are likely to cause this issue? (Choose two)

• A. The web filtering rating service is not working
• B. FortiAnalyzer does not have a valid threat detection services license
• C. The device does not have FortiClient installed
• D. FortiAnalyzer does not consider the malicious website an indicator of compromise (IOC)

Answer: BD

Explanation:
According to the exhibits, the administrator has configured an automation stitch to automatically quarantine compromised devices based on FortiAnalyzer’s threat detection services. However, according to the FortiAnalyzer logs, the test device is not detected as compromised by FortiAnalyzer, even though it tried to access a malicious website. Therefore, option B is true because FortiAnalyzer does not have a valid threat detection services license, which is required to enable the threat detection services feature. Option D is also true because FortiAnalyzer does not consider the malicious website an indicator of compromise (IOC), which is a criterion for identifying compromised devices. Option A is false because the web filtering rating service is working, as shown by the log entry that indicates that the test device accessed a URL with a category of “Malicious Websites”. Option C is false because the device does not need to have FortiClient installed to be quarantined by FortiGate, as long as it is connected to a managed FortiSwitch device.

NEW QUESTION 4
Which EAP method requires the use of a digital certificate on both the server end and the client end?

• A. EAP-TTLS
• B. PEAP
• C. EAP-GTC
• D. EAP-TLS

Answer: D

Explanation:
According to the FortiGate Administration Guide, “EAP-TLS is the most secure EAP method. It requires a digital certificate on both the server end and the client end. The server and client authenticate each other using
their certificates.” Therefore, option D is true because it describes the EAP method that requires the use of a digital certificate on both the server end and the client end. Option A is false because EAP-TTLS only requires a digital certificate on the server end, not the client end. Option B is false because PEAP also only requires a digital certificate on the server end, not the client end. Option C is false because EAP-GTC does not require a digital certificate on either the server end or the client end.

NEW QUESTION 5
You are investigating a report of poor wireless performance in a network that you manage. The issue is related to an AP interface in the 5 GHz range You are monitoring the channel utilization over time.
What is the recommended maximum utilization value that an interface should not exceed?

• A. 85%
• B. 95%
• C. 75%
• D. 65%

Answer: D

Explanation:
According to the FortiAP Configuration Guide, “Channel utilization measures how busy a channel is over a given period of time. It includes both Wi-Fi and non-Wi-Fi interference sources. A high channel utilization indicates a congested channel and can result in poor wireless performance. The recommended maximum utilization value that an interface should not exceed is 65%.” Therefore, option D is true because it gives the recommended maximum utilization value for an interface in the 5 GHz range. Options A, B, and C are false because they give higher utilization values that can cause poor wireless performance.
https://docs.fortinet.com/document/fortiap/7.0.0/configuration-guide/734537/wireless-radio-settings#channel-uti

NEW QUESTION 6

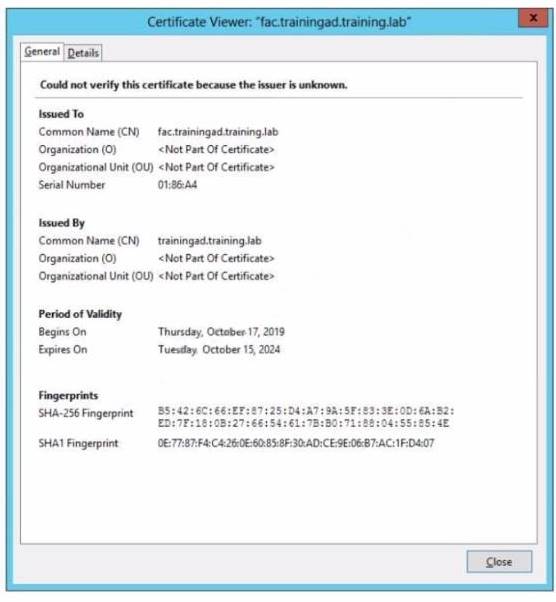

Refer to the exhibit

Wireless guest users are unable to authenticate because they are getting a certificate error while loading the captive portal login page.This URL string is the HTTPS POST URL guest wireless users see when attempting to access the network using the web browser

Which two settings are the likely causes of the issue? (Choose two.)

• A. The external server FQDN is incorrect
• B. The wireless user's browser is missing a CA certificate
• C. The FortiGate authentication interface address is using HTTPS
• D. The user address is not in DDNS form

Answer: AB

Explanation:
According to the exhibit, the wireless guest users are getting a certificate error while loading the captive portal login page. This means that the browser cannot verify the identity of the server that is hosting the login page. Therefore, option A is true because the external server FQDN is incorrect, which means that it does not match the common name or subject alternative name of the server certificate. Option B is also true because the wireless user’s browser is missing a CA certificate, which means that it does not have the root or intermediate certificate that issued the server certificate. Option C is false because the FortiGate authentication interface address is using HTTPS, which is a secure protocol that encrypts the communication between the browser and the server. Option D is false because the user address is not in DDNS form, which is not related to the certificate error.

NEW QUESTION 7
Which two statements about MAC address quarantine by redirect mode are true? (Choose two)

• A. The quarantined device is moved to the quarantine VLAN
• B. The device MACaddress is added to the Quarantined Devices firewall address group
• C. It is the default mode for MAC address quarantine
• D. The quarantined device is kept in the current VLAN

Answer: BD

Explanation:
According to the FortiGate Administration Guide, “MAC address quarantine by redirect mode allows you to quarantine devices by adding their MAC addresses to a firewall address group called Quarantined Devices. The quarantined devices are kept in their current VLANs, but their traffic is redirected to a quarantine portal.” Therefore, options B and D are true because they describe the statements about MAC address quarantine by redirect mode. Option A is false because the quarantined device is not moved to the quarantine VLAN, but rather kept in the current VLAN. Option C is false because redirect mode is not the default mode for MAC address quarantine, but rather an alternative mode that can be enabled by setting mac-quarantine-mode to redirect.
https://docs.fortinet.com/document/fortiap/7.0.0/configuration-guide/734537/radius-authenticated-dynamic-vlan
: https://docs.fortinet.com/document/fortigate/7.0.0/administration-guide/734537/mac-address-quarantine

NEW QUESTION 8
Where can FortiGate learn the FortiManager IP address or FQDN for zero-touch provisioning'?

• A. From an LDAP server using a simple bind operation
• B. From a TFTP server
• C. From a DHCP server using options 240 and 241
• D. From a DNS server using A or AAAA records

Answer: D

Explanation:
According to the FortiGate Administration Guide, “FortiGate can learn the FortiManager IP address or FQDN for zero-touch provisioning from a DNS server using A or AAAA records. The DNS server must be configured to resolve the hostname fortimanager.fortinet.com to the IP address or FQDN of the FortiManager device.” Therefore, option D is true because it describes the method for FortiGate to learn the FortiManager IP address or FQDN for zero-touch provisioning. Option A is false because LDAP is not used for zero-touch provisioning. Option B is false because TFTP is not used for zero-touch provisioning. Option C is false because DHCP options 240 and 241 are not used for zero-touch provisioning.

NEW QUESTION 9
Which CLI command should an administrator use to view the certificate verification process in real time?

• A. diagnose debug application foauthd -1
• B. diagnose debug application radiusd -1
• C. diagnose debug application authd -1
• D. diagnose debug application fnbamd -1

Answer: A

Explanation:
According to the FortiOS CLI Reference Guide, “The diagnose debug application foauthd command enables debugging of certificate verification process in real time.” Therefore, option A is true because it describes the CLI command that an administrator should use to view the certificate verification process in real time. Option B is false because diagnose debug application radiusd -1 enables debugging of RADIUS authentication process, not certificate verification process. Option C is false because diagnose debug application authd -1 enables debugging of authentication daemon process, not certificate verification process. Option D is false because diagnose debug application fnbamd -1 enables debugging of FSSO daemon process, not certificate verification process.

NEW QUESTION 10

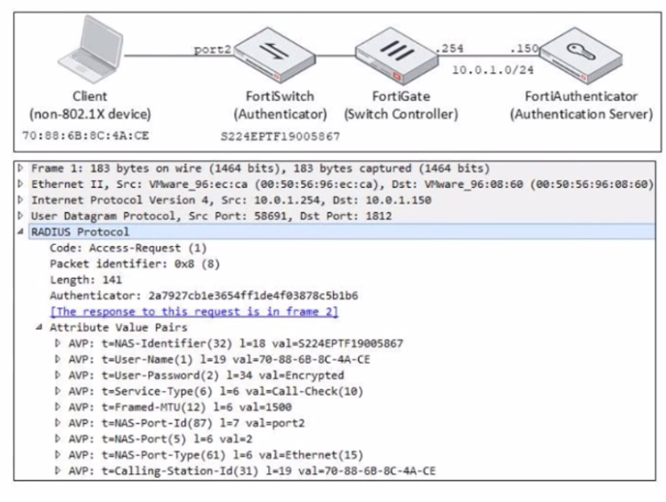

Refer to the exhibit.

Examine the network diagram and packet capture shown in the exhibit
The packet capture was taken between FortiGate and FortiAuthenticator and shows a RADIUS Access-Request packet sent by FortiSwitch to FortiAuthenticator through FortiGate
Why does the User-Name attribute in the RADIUS Access-Request packet contain the client MAC address?

• A. The client is performing AD machine authentication
• B. FortiSwitch is authenticating the client using MAC authentication bypass
• C. The client is performing user authentication
• D. FortiSwitch is sending a RADIUS accounting message to FortiAuthenticator

Answer: B

Explanation:
According to the exhibit, the User-Name attribute in the RADIUS Access-Request packet contains the client MAC address of 00:0c:29:6a:2b:3d. This indicates that FortiSwitch is authenticating the client using MAC authentication bypass (MAB), which is a method of authenticating devices that do not support 802.1X by using their MAC address as the username and password. Therefore, option B is true because it explains why the User-Name attribute contains the client MAC address. Option A is false because AD machine authentication uses a computer account name and password, not a MAC address. Option C is false because user authentication uses a user name and password, not a MAC address. Option D is false because FortiSwitch is sending a RADIUS Access-Request message to FortiAuthenticator, not a RADIUS accounting message.

NEW QUESTION 11

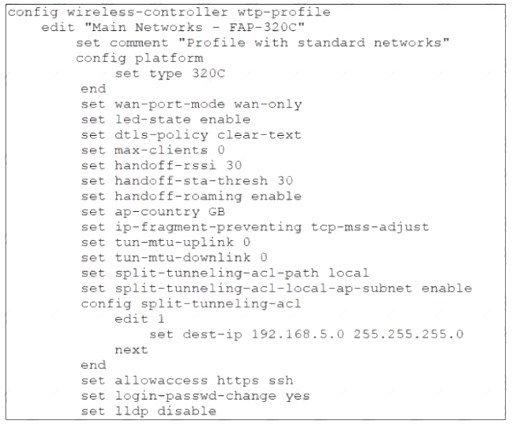

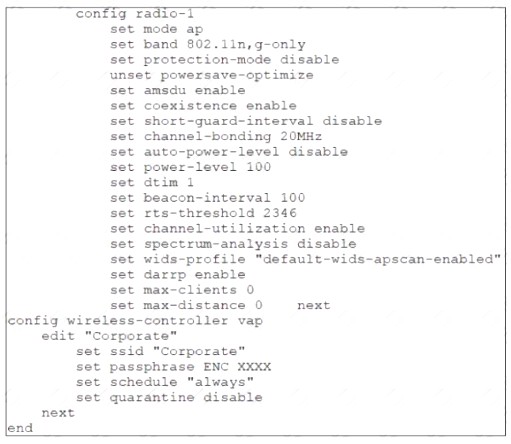

Exhibit.

Exhibit.

Refer to the exhibits
In the wireless configuration shown in the exhibits, an AP is deployed in a remote site and has a wireless network (VAP) called Corporate deployed to it
The network is a tunneled network however clients connecting to a wireless network require access to a local printer Clients are trying to print to a printer on the remote site but are unable to do so
Which configuration change is required to allow clients connected to the Corporate SSID to print locally?

• A. Configure split-tunneling in the vap configuration
• B. Configure split-tunneling in the wtp-profile configuration
• C. Disable the Block Intra-SSID Traffic (intra-vap-privacy) setting on the SSID (VAP) profile
• D. Configure the printer as a wireless client on the Corporate wireless network

Answer: A

Explanation:
According to the Fortinet documentation1, “Split tunneling allows you to specify which traffic is tunneled to the FortiGate and which traffic is sent directly to the Internet. This can improve performance and reduce bandwidth usage.” Therefore, by configuring split-tunneling in the vap configuration, you can allow the clients connected to the Corporate SSID to access both the corporate network and the local printer. Option B is incorrect because split-tunneling is configured at the vap level, not the wtp-profile level. Option C is incorrect because blocking intra-SSID traffic prevents wireless clients on the same SSID from communicating with each other, which is not related to accessing a local printer. Option D is unnecessary and impractical because the printer does not need to be a wireless client on the Corporate wireless network to be accessible by the clients.
