NEW QUESTION 1
A network administrator wants to see the VLANs supported on one ArubaOS switch interface and if those VLANs have tagged or untagged assignments. What should the administrator do to find this information?
- A. View the MAC forwarding table for the interface and VLAN with the show mac-address command.
- B. Use the detail option with the show vlans port command.
- C. Use the local-device option with the show lldp info command.
- D. View the interface with the show interface command.
Answer: B
NEW QUESTION 2

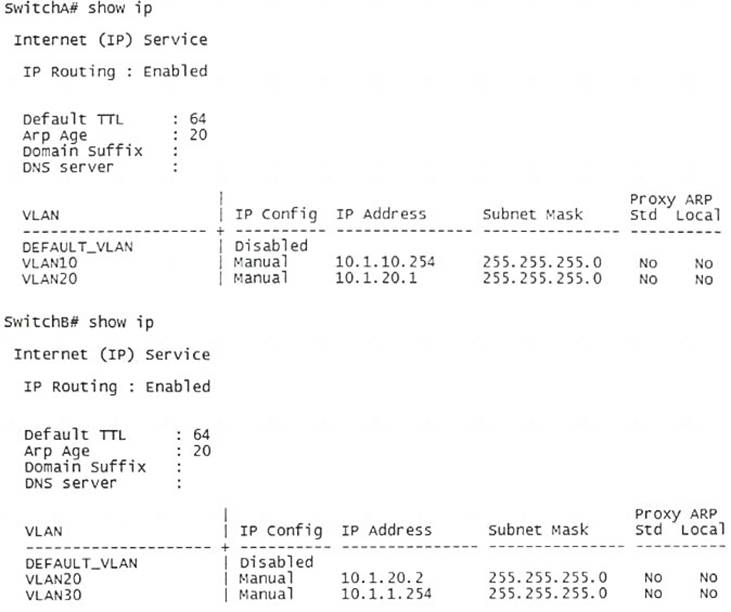

Refer to the exhibit.
Exhibit 1.
Exhibit 2.
A network administrator needs to set up DHCP relay in a switched network comprised of ArubaOS switches. Switch A and Switch B have the IP settings in Exhibit 2, and no static or dynamic routes. Switch B is the DCHP server’s default gateway. The administrator correctly configures the IP helper address on Switch A. However, when the DHCP client attempts to acquire an IP address in VLAN 10, the process fails.
What does the administrator need to do to solve this problem?
- A. Configure a static route on Switch A, and enable IP Helper on Switch B.
- B. Configure a static route on Switch A.
- C. Configure a static route on Switch A and Switch B, and enable IP Helper on Switch B.
- D. Configure a static route on Switch A and Switch B.
Answer: D
NEW QUESTION 3
For which task does a network administrator need to access the enable context on an ArubaOS switch?
- A. to view interface statistics
- B. to view CPU statistics
- C. to ping an IP address
- D. to view configuration files
Answer: D
NEW QUESTION 4
A network administrator plans two interfaces for a Virtual Switching Framework (VSF) link. Which best practice should the administrator follow?
- A. Configure a low spanning tree cost on the interfaces.
- B. Configure the interfaces as a distributed trunk.
- C. Use interfaces on different modules.
- D. Use copper connections.
Answer: C
NEW QUESTION 5
A company has a single routing protocol environment.
What is one reason to use OSPF routing instead of static routing?
- A. OSPF allows ArubaOS switches to use default routes, while static routes cannot use 0.0.0.0/0 as the destination network.
- B. OSPF has a lower default administrative distance than static routing on ArubaOS switches.
- C. OSPF reduces the risk of accidentally introducing routing loops, while static routing does not.
- D. OSPF permits load sharing traffic over multiple routes, while static routing does not.
Answer: C
NEW QUESTION 6

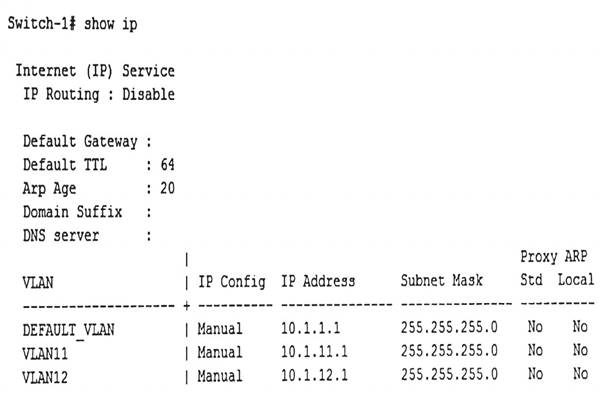

Refer to the exhibit.
What should the network administrator do to permit Switch-1 to route traffic from a client in 10.1.11.0/24 to a client in 10.1.12.0/24?
- A. Enable proxy ARP.
- B. Enable IP routing.
- C. Configure a static route to 10.1.11.0/24 and a static route to 10.1.12.0/24.
- D. Enable OSPF routing on VLAN 11 and on VLAN 12 in the same area.
Answer: B
NEW QUESTION 7
An ArubaOS switch is protected with a manager password. The network administrator wants to back up the configuration and apply it to other switches. The administrator wants the manager password to be available in both the saved and running configuration.
To accomplish this goal, what must the administrator do before the configuration is backed up?
- A. Enter the password command with the plaintext option.
- B. Configure an SSH keypair on the switch.
- C. Enter the include-credentials command.
- D. Ensure that the server to which the configuration will be backed up uses SCP as opposed to TFTP.
Answer: C
NEW QUESTION 8

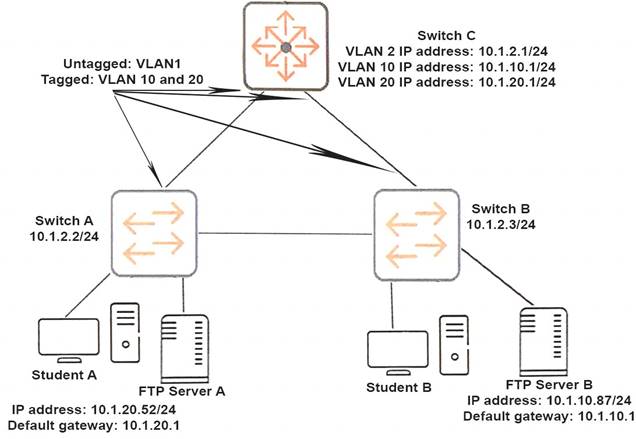

Refer to the exhibit.
Assume that Student A’s ARP table is empty. Student A prepares to send an FTP packet to FTP Server B and needs to discover the proper destination MAC address.
For which IP address does Student A send an ARP request?
- A. 10.1.2.2
- B. 10.1.10.1
- C. 10.1.10.87
- D. 10.1.20.1
Answer: D
NEW QUESTION 9
Which configuration settings for an ArubaOS switch must be deleted from a physical interface before it can be associated with a Virtual Switching Framework (VSF) link?
- A. Distributed trunking
- B. Virtual Router Redundancy Protocol (VRRP)
- C. Multi-Active Detection (MAD)
- D. Graceful OSPF (non-stop forwarding)
Answer: A
NEW QUESTION 10
Which security benefit does SNMPv3 offer that SNMPv2 does not offer?
- A. SSL encryption
- B. Scopes
- C. Data integrity
- D. RADIUS groups
Answer: C
NEW QUESTION 11

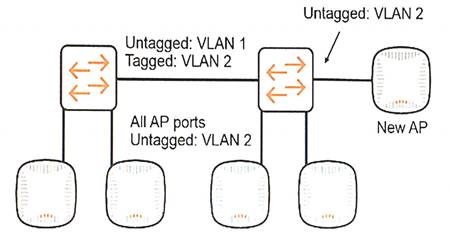

Refer to the exhibit.
A company has an existing Aruba Instant cluster with several Instant APs (IAPs), as shown in the exhibit. The network administrator orders a new IAP and boots it for the first time by connecting it to the PoE switch port shown in the exhibit.
What happens after the IAP boots?
- A. The IAP attempts to contact AirWav
- B. If it is able to reach AirWave and obtain the current VC (master) IP address, it joins the cluster.
- C. The IAP fails to join the cluster because the administrator has not yet connected to its Instant SSID andprovisioned it.
- D. The IAP undergoes an election process with the current VC (master). It takes the VC role if it has a higher MAC address unless the current VC is configured as the preferred VC.
- E. The IAP hears the messages from the current VC (master), and it joins the cluster without the occurrence of a new election.
Answer: A
NEW QUESTION 12
A network administrator wants to pre-configure new MSTP region settings on ArubaOS switches, and then apply the new settings at a later time. How can the administrator pre-configure the settings?
- A. Change the MSTP region name after the new settings are configured.
- B. Create a second spanning tree region on the switch and apply the settings to this region.
- C. Use the pending option in the spanning-tree commands.
- D. Change the MSTP region revision number after the new settings are configured.
Answer: C
NEW QUESTION 13
Which settings should match on physical interfaces before a network administrator combines them in a link aggregation?
- A. speed and duplex mode
- B. DSCP and media
- C. speed and VLANs
- D. LLDP TLVs and VLAns
Answer: A
NEW QUESTION 14
A network administrator needs to complete the initial setup on an ArubaOS switch with the use of remote access. How can the network administrator do this?
- A. Connect the switch’s OOBM port to the same VLAN as the management station, and then establish a Telnet session to the switch default IP address.
- B. Connect the switch’s OOBM port to the same VLAN as Aruba AirWav
- C. Then manually discover the switch in AirWave using the switch default IP address.
- D. Send a Reverse ARP from the management station and assign a temporary IP to the workstation.
- E. Set up the network DHCP server to assign the switch a reserved IP addres
- F. Connect the switch to a VLAN with DHCP services and then establish a Telnet session to the reserved IP address.
Answer: B
NEW QUESTION 15
An interface on an ArubaOS switch did not receive any BDPUs and has the spanning tree auto-edge setting. What describes the effect of this setting?
- A. The interface has spanning tree disabled on it and ignore BPDUs.
- B. The interface remains forwarding during topology changes.
- C. The interface root path cost is automatically set to 0.
- D. The interface is preferred to be selected as master port.
Answer: B
NEW QUESTION 16
An ArubaOS switch operates at its factory default settings. A network administrator connects the switch to a VLAN with a DHCP server. The switch-to-switch connection carries untagged traffic. The administrator wants to use Telnet log in to the switch CLI.
How should the administrator contact the switch and log in?
- A. Contact the switch at its default IP address 172.16.0.254/24 and log in without entering a password.
- B. Contact the switch at its default IP address 192.168.1.1/24 and log in with the default password admin.
- C. Contact the switch at its DHCP-assigned IP address and log in without entering a password.
- D. Contact the switch at its DHCP-assigned IP address and log in with the default password aruba.
Answer: B
NEW QUESTION 17
A network administrator wants to place desktops connected to an ArubaOS switch in VLAN5. The desktops have no awareness of VLANs. How should the administrator assign desktops to the VLAN?
- A. Make switch ports connected to desktops tagged members of VLAN5.
- B. Make VLAN5 the Default VLAN on the switch before the desktops connect to the switch ports.
- C. Make VLAN5 the Primary VLAN on the switch.
- D. Make switch ports connected to desktops untagged members of VLAN5.
Answer: D
NEW QUESTION 18
A network administrator has copied new software to an ArubaOS switch and placed this software in the secondary ash location. The switch is currently booting from the primary location. The administrator wants the switch to start using the new software.
What should the administrator do to accomplish this?
- A. Reboot the switch, which automatically causes the switch to use the newer software.
- B. Execute the command to boot the system from the secondary flash.
- C. Rename the secondary software as the primary software.
- D. Copy the secondary software to the primary software slot.
Answer: B
NEW QUESTION 19

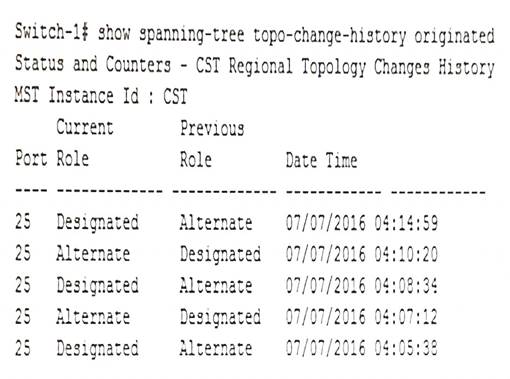

Refer to the exhibit.
Based on the exhibit, what is the problem?
- A. An issue causes the spanning tree to converge and re-converge again and again.
- B. Interface 25 on Switch-1 is incorrectly configured as an STP edge port and causes a loop to occur.
- C. Interface 25 on Switch-1 does not support the correct VLANs and prevents the interface from receiving the correct STP role.
- D. Switch-1 and another switch are configured with the same spanning tree priority and cause the root election to occur again and again.
Answer: A
NEW QUESTION 20
A company needs a switch that supports 10GbE and 40GbE for its mid-sized campus. The company prefers stackable, or fixed port, switches over modular switches. Which ArubaOS switch series best meet these needs?
- A. Aruba 2530
- B. Aruba 2930F
- C. Aruba 3810
- D. Aruba 5400R
Answer: B
NEW QUESTION 21

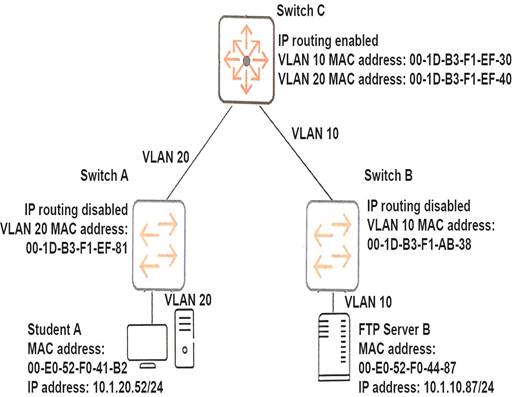

Refer to the exhibit.
The student A client needs to connect to FTP Server B. Student A sends the necessary ARP request and receives a reply.
Which destination MAC address does the Student A client use in the FTP packet to FTP Server B?
- A. 00-1D-B3-F1-EF-40
- B. 00-E0-52-F0-44-87
- C. 00-1D-B3-F1-EF-31
- D. 00-E0-52-F0-41-B2
Answer: A
NEW QUESTION 22

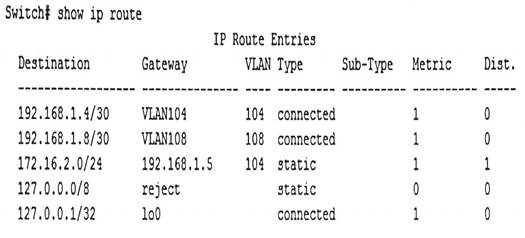

Refer to the exhibit.
The network administrator enters this command:
Switch(config)# ip route 172.16.2.0/30 192.168.1.100 metric 1 distance 1 Why does this route fail to appear in the IP routing table?
- A. Its prefix length is invalid.
- B. Its next hop is unreachable.
- C. Its administrative distance is the same as an existing static route.
- D. Its metric is the same as an existing static route.
Answer: B
