NEW QUESTION 1
At which Layer would you check for spanning tree loops?
- A. Layer 1
- B. Layer 2
- C. Layer 3
- D. Layer 4
Answer: B
NEW QUESTION 2
Which two commands can help you to determine what image is running on your industrial switch? (Choose two.)
- A. show version
- B. show spanning-tree
- C. show interface-switch
- D. show interfaces gigabitEthernet x/y switchport
- E. show license
Answer: AE
NEW QUESTION 3
Which three pieces of information must be maintained for all stakeholders as part of the change management process? (Choose three.)
- A. the location of the person who applied the change
- B. the date and time that the change was applied and on which device
- C. the original change request form that indicates why the change is necessary
- D. the size of the change (in bytes)
- E. a description of the actual change itself (configuration, program code, and so on)
- F. the names of the current members of the change advisory board
- G. the industrial protocol that is used
Answer: BCE
NEW QUESTION 4
What should be done with unused conductors in copper unshielded or shielded twisted-pair network cables?
- A. terminate in their characteristic impedance
- B. trim back and properly insulate
- C. connect to protective earth
- D. splice to a used conductor
Answer: A
NEW QUESTION 5
An Ethernet cable is attached to a PC NIC and then attached to a switch port. The PC power is turned on and the switch port link LED turns green. The link light indicates what two conditions? (Choose two.)
- A. Layer 2 communication has been established between the PC and switch.
- B. The PC has received a DHCP address.
- C. Traffic is being sent from the switch to the PC.
- D. If flashing, the green LED indicates port speed of 100 Mb/s.
- E. The Layer 1 media is functioning between the PC and switch.
- F. The switch port is functioning as a half-duplex connection.
Answer: AE
NEW QUESTION 6
A router is not operating as expected and the network administrator wants to verify that the router booted using the correct IOS image. Which command should be used to determine which IOS is running on the router?
- A. show flash
- B. show version
- C. show memory
- D. show startup-config
- E. show config-register
Answer: B
NEW QUESTION 7
At which Layer would you troubleshoot a cabling issue?
- A. Layer 1
- B. Layer 2
- C. Layer 3
- D. Layer 4
Answer: A
NEW QUESTION 8

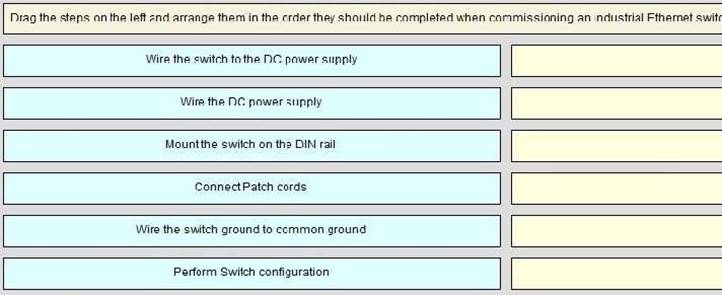

DRAG DROP
- A. Mastered
- B. Not Mastered
Answer: A
Explanation:
NEW QUESTION 9
What is a characteristic of cables that are used in articulating equipment arms?
- A. fiber-optic zip-cord construction
- B. shielded copper twisted pair
- C. high flex rated cable
- D. type PLTC cable
Answer: C
NEW QUESTION 10
What does the Cisco PSIRT issue for significant security issues that directly involve Cisco products and require an upgrade, fix, or other customer action?
- A. Cisco Security Advisories
- B. Cisco Security Responses
- C. Cisco Security Notices
- D. Cisco Security Bulletins
Answer: A
NEW QUESTION 11
What two things does a router do when it forwards a packet? (Choose two.)
- A. switches the packet to the appropriate outgoing interfaces
- B. computes the destination host address
- C. determines the next hop on the path
- D. updates the destination IP address
- E. forwards ARP requests
Answer: AC
NEW QUESTION 12
Which parameter would you tune to affect the selection of a static route as a backup, when a dynamic protocol is also being used?
- A. hop count
- B. administrative distance
- C. link bandwidth
- D. link delay
- E. link cost
Answer: B
NEW QUESTION 13

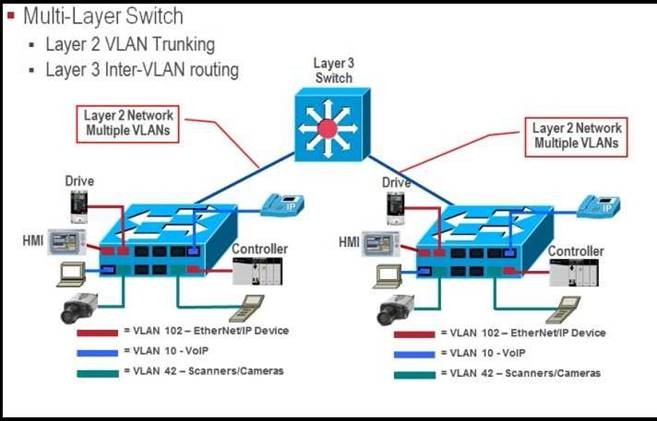

Exhibit:
Refer to the exhibit. What are three traffic and interconnection requirements for the devices in the exhibit? (Choose three.)
- A. The EtherNet/IP drive connections are in a high-voltage area and need protection from electromagnetic noise, so shielded cable that is rated for 600 V is advised.
- B. EtherNet/IP devices such as the controller, drive, VoIP phone, and IP camera should be in the sameVLAN.
- C. CIP traffic has the highest bandwidth requirement so it needs the highest QoS setting.
- D. EtherNet/IP drive traffic has high sensitivity to random drops, latency, and jitter.
- E. Real-time motion control and VoIP traffic can share the same VLAN with the proper QoS setting.
- F. IEEE1588 and PTP are important for ensuring real-time synchronization.
Answer: ADF
NEW QUESTION 14
An administrator has connected devices to an industrial switch and, for security reasons, wants the dynamically learned MAC addresses from the address table added to the running configuration. What must be done to accomplish this?
- A. Enable port security and use the keyword sticky.
- B. Set the switchport mode to trunk and save the running configuration.
- C. Use the switchport protected command to have the MAC addresses added to the configuration.
- D. Use the no switchport port-security command to allow MAC addresses to be added to the configuration.
Answer: A
NEW QUESTION 15
EtherNet/IP is an Ethernet implementation of which protocol?
- A. CIP
- B. Industrial Protocol
- C. DeviceNet
- D. ControlNet
Answer: A
NEW QUESTION 16
A network administrator has subnetted the 172.16.0.0 network using a subnet mask of 255.255.255.192. A duplicate IP address of 172.16.2.120 has accidentally been configured on a workstation in the network. The technician on the plant floor must assign this workstation a new IP address within that same subnetwork. Which address should be assigned to the workstation?
- A. 172.16.1.80
- B. 172.16.2.80
- C. 172.16.1.64
- D. 172.16.2.64
- E. 172.16.2.127
- F. 172.16.2.128
Answer: B
NEW QUESTION 17

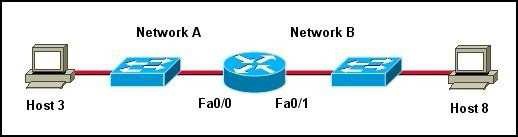

Exhibit:
Refer to the exhibit. Host 3 on Network A is sending data to Host 8 on Network B. Which address is the default gateway of Host 3?
- A. the address of the switch interface that is connected to router interface Fa0/0
- B. the address of the switch interface that is connected to router interface Fa0/1
- C. the address of the host that is connected to Network A
- D. the address of the host that is connected to Network B
- E. the address of the router interface Fa0/0
- F. the address of the router interface Fa0/1
Answer: E
NEW QUESTION 18
According to the Purdue Reference Model, at which layer would you perform manufacturing operations and control?
- A. Level 0
- B. Level 1
- C. Level 2
- D. Level 3
- E. Level 4
Answer: D
NEW QUESTION 19
Which two pieces of information are commonly tracked as part of a change management process? (Choose two.)
- A. reason for the change
- B. names of people involved in the change
- C. return on investment related to the change
- D. SWOT analysis related to the change
- E. scatter diagrams related to the change
Answer: AB
NEW QUESTION 20
A small manufacturing company has a Class C network address on the plant floor and needs to create five subnets, each accommodating 25 endpoints. Which subnet mask needs to be configured?
- A. 255.255.240.0
- B. 255.255.255.128
- C. 255.255.255.192
- D. 255.255.255.224
- E. 255.255.255.240
- F. 255.255.255.248
Answer: D
NEW QUESTION 21
What is the purpose of a time domain reflectometer?
- A. It uses pulses to locate and test for sheath faults, damaged conductors, loose connectors, splices, bridge taps, split pairs, and other problems.
- B. It opens shorts and pinholes in cable shielding.
- C. It correlates the returned light pulses with a location in the fiber.
- D. It opens kinks and mismatched cable connectors.
Answer: A
NEW QUESTION 22
With a Cisco IE 2000 switch, what does a port status LED indicate when it is solid green?
- A. The port is sending or receiving data.
- B. A link is present.
- C. No link is present.
- D. There is a link fault.
- E. The port is not forwarding.
Answer: B
NEW QUESTION 23
At which Layer would you check ACLs for TCP ports being blocked?
- A. Layer 1
- B. Layer 2
- C. Layer 3
- D. Layer 4
Answer: D
NEW QUESTION 24
What do deflections indicate to the time domain reflectometer user?
- A. They indicate splices, water in the cable, split pairs, and discontinuities or faults.
- B. Do not connect live circuit cables to the input of the time domain reflectomete
- C. Connect the cable that is being tested to the cable connector on the front panel of the time domain reflectometer.
- D. Upward deflections indicate high-impedance mismatches or opens, and downward deflections indicateshorts or low-impedance mismatches.
- E. They are used to select the I/O impedance of the time domain reflectomete
- F. You can select 50, 75, 95, or 125? impedances.
Answer: C
